Event Builder

Group time-sorted hits into acoustic-emission events with vallenae.processor.EventBuilder.

The Event Builder is a streaming state machine that mirrors VisualAE’s grouping logic. It assigns hits to events using three timing parameters:

• FHCDT – First Hit Channel Discrimination Time. Quiet gap required before a hit qualifies as Start-of-Event (SoE).

• DT1X-Max – maximum time between SoE and any hit in the event.

• DTNX-Max – maximum time between two consecutive hits in the event.

This example feeds the hits from steel_plate/sample.pridb into the builder using the same parameters as the bundled sample.vaex setup.

from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

import vallenae as vae

HERE = Path(__file__).parent if "__file__" in locals() else Path.cwd()
PRIDB = HERE / "steel_plate" / "sample.pridb"
TRADB = HERE / "steel_plate" / "sample.tradb"

Stream hits into the Event Builder

EventBuilder.process_all consumes any iterable of HitRecord’s and yields Event’s as they close. We feed it directly from iread_hits – no need to materialize a DataFrame.

builder = vae.processor.EventBuilder(fhcdt=2e-3, dt1x_max=2e-3, dtnx_max=2e-3)
with vae.io.PriDatabase(PRIDB) as pridb:
    events = list(builder.process_all(pridb.iread_hits()))

print(f"{len(events)} event(s) built from {sum(len(ev.hits) for ev in events)} hit(s)")

1 event(s) built from 4 hit(s)

Inspect the resulting events

Each Event exposes its hits time-sorted, the first-hit channel, the channel sequence, and the time deltas of the subsequent hits to the SoE (VisualAE’s DT12..DT1n).

for i, ev in enumerate(events, start=1):
    print(f"Event {i}: SoE at t = {ev.time:.6f} s, close reason = {ev.close_reason.name}")
    print(f"  channel sequence: {ev.channel_sequence}")
    print(f"  dt to first hit:  {[f'{dt * 1e6:.1f} µs' for dt in ev.dt_to_first]}")

# Pick the (only) event in this sample and pre-compute arrival times relative to the SoE.
event = events[0]
arrival_us = np.array([0.0, *event.dt_to_first]) * 1e6

Event 1: SoE at t = 3.992771 s, close reason = END_OF_STREAM
  channel sequence: [3, 2, 4, 1]
  dt to first hit:  ['3.7 µs', '41.9 µs', '43.3 µs']

Delta-time matrix

Pairwise arrival-time differences between every channel pair in the event, in µs. Cell (i, j) is the delay from channel i to channel j (positive = j arrived later). This is the input most acoustic-emission localization algorithms work with.

df_dt = pd.DataFrame(
    arrival_us[None, :] - arrival_us[:, None],
    index=pd.Index(event.channel_sequence, name="ch"),
    columns=event.channel_sequence,
)
print(df_dt.round(2))

       3     2     4     1
ch
3    0.0   3.7  41.9  43.3
2   -3.7   0.0  38.2  39.6
4  -41.9 -38.2   0.0   1.4
1  -43.3 -39.6  -1.4   0.0

Visualize the event

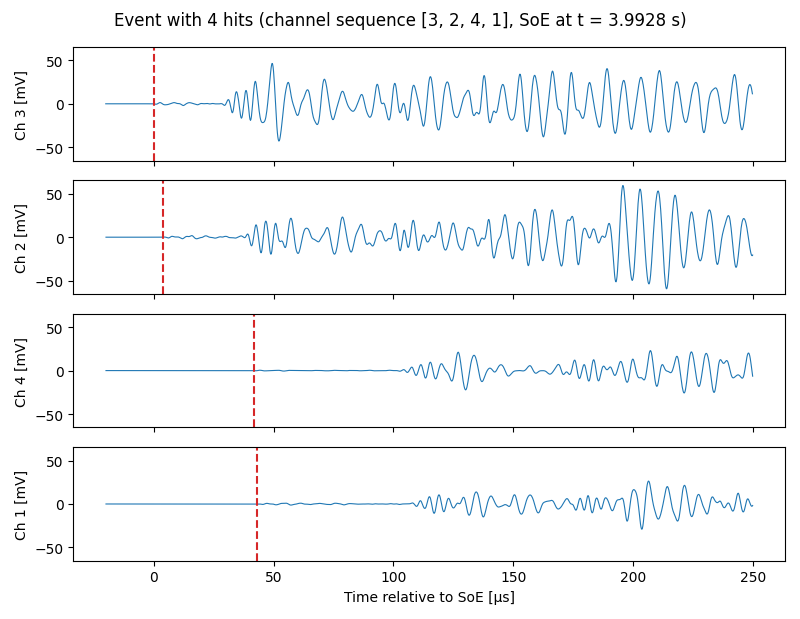

Plot the waveform of every hit in the event on its own row, aligned on the Start-of-Event. The vertical dashed lines mark each hit’s arrival time – you can see the AE wavefront reaching the four sensors a few µs apart, which is exactly what the Event Builder grouped.

window_us = (-20, 250)
fig, axes = plt.subplots(
    nrows=len(event.hits),
    sharex=True,
    sharey=True,
    figsize=(8, 1.4 * len(event.hits) + 0.6),
    tight_layout=True,
)
fig.suptitle(
    f"Event with {len(event.hits)} hits "
    f"(channel sequence {event.channel_sequence}, SoE at t = {event.time:.4f} s)"
)
axes[-1].set_xlabel("Time relative to SoE [µs]")

with vae.io.TraDatabase(TRADB) as tradb:
    for ax, hit, dt_us in zip(axes, event.hits, arrival_us):
        y, t = tradb.read_wave(hit.trai)
        t_us = t * 1e6 + dt_us
        mask = (t_us >= window_us[0]) & (t_us <= window_us[1])
        ax.plot(t_us[mask], y[mask] * 1e3, color="C0", linewidth=0.8)
        ax.axvline(dt_us, color="C3", linestyle="--")
        ax.set_ylabel(f"Ch {hit.channel} [mV]")

plt.show()
